UL 2468 AWG26 5P
更新：2016/10/17 23:13:54 点击：2193
- 产品型号 UL2468#26-5P
- 产品描述
UL 2468 AWG26 5P
产品介绍
| CABLE DATA | |||||||
| CONDUCTOR | SIZE:AWG26 | ||||||
| TINNED COPPER 7/0.16±0.008MM | |||||||
| RESISTANCE AT 20℃ MAX. 149.00Ω/KM | |||||||
| INSULATION | MATERIAL:PVC INSULATION | ||||||
| INSULATIONTHICKNESS:NOM:0.43MM,MIN.0.36MM | |||||||
| OVER DIAMETER:(1.5±0.1)*(7.5±0.2)MM | |||||||
| RATED:80 ℃ 300V | |||||||
| COLOR: BLACK*4 RED*1 | |||||||
| CORES:5P (PH=1.5±0.15MM) | |||||||
| MARKING |

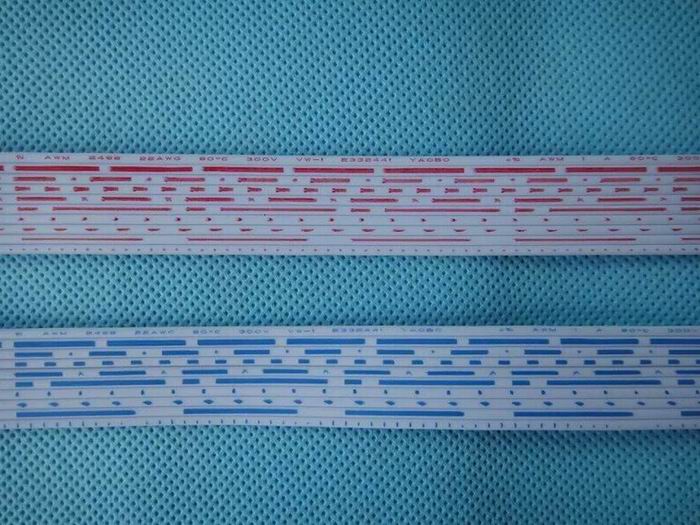

AWM 2468 26AWG 80℃ 300V VW-1 E332441 YAOBO C AWM I A 80℃ 300V FT-1
|
||||||
| ELECTRIC FUNCTION: | |||||||
| ● Flame resistance: VW-1 or FT1 | |||||||
| ● Standard:UL758, UL1581 | |||||||
| ● Rated Voltage: 300V | |||||||
| ● Voltage withstand: 2500V/1Min. | |||||||
| ● Insu.Resistance: Min.100MΩ/Km AT 20℃ | |||||||
| ● Tensile Strrngth Before Aging : 1500PSL | |||||||
| ● Tensile Strength After Aging: 1290PSL (85%) | |||||||
| ● Elongation Before Aging: 100% Min. | |||||||
| ● Elongation After Aging: 65% Min.(136℃*168H) | |||||||
