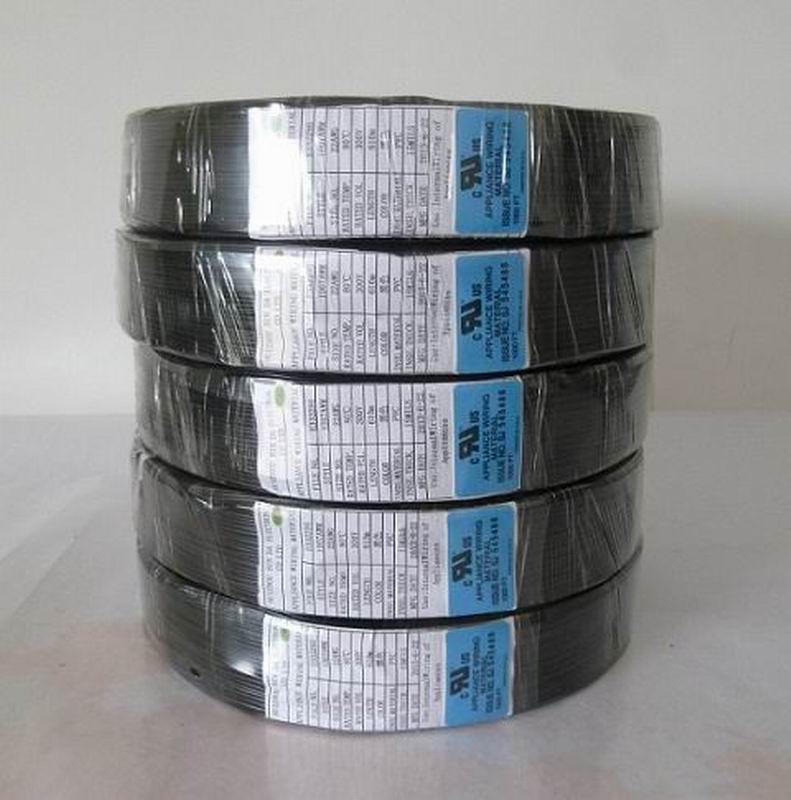

UL Style 1571 Hook-up Wire
● Conductor: Tinned Plated or Bare Copper				● Insulation: PVC
● Operating Temperature:80℃				● Rated Voltage：30V DC
● RoHs Compliant				● Standard:UL758, UL1581

Gauge	No.of Strands	Diameter of Strands MM	Diameter of Conductor	Resistance at 20℃ Ω/KM	Insulatio Thickness MM	Overall Diameter MM
						Overall Diameter MM
						Normal	Tolerance
10	105	0.254	3.00	3.54	0.50	4.00	±0.15
12	65	0.254	2.36	5.64	0.50	3.36	±0.15
14	41	0.254	1.88	8.96	0.50	2.90	±0.15
16	26	0.254	1.50	14.60	0.38	2.30	±0.10
18	16	0.254	1.15	23.20	0.38	1.95	±0.10
20	21	0.18	0.95	36.70	0.38	1.75	±0.10
22	17	0.16	0.76	59.40	0.38	1.56	±0.10
24	11	0.16	0.61	94.20	0.38	1.41	±0.10
26	7	0.16	0.48	150.00	0.38	1.28	±0.10
28	7	0.127	0.38	239.00	0.38	1.14	±0.10
30	7	0.10	0.30	381.00	0.38	1.06	±0.10
