UL Style 1569 Hook-up Wire

更新：2016/10/17 22:49:26 点击：1640

产品介绍

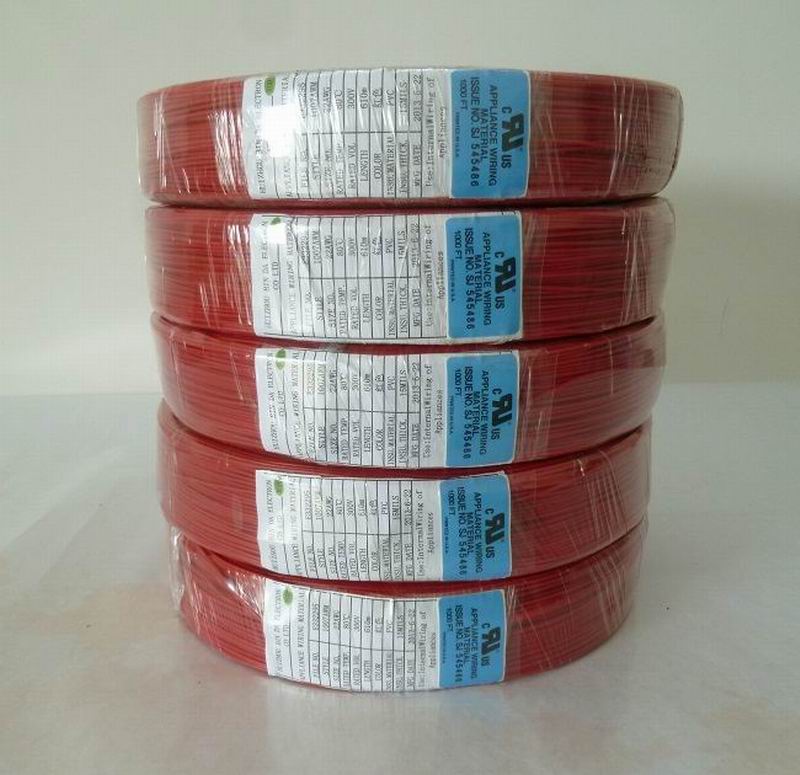

UL Style 1569 Hook-up Wire
● Conductor:Tinned Plated or Bare Copper				● Insulation: PVC
● Operating Temperature: 105℃				● Rated Voltage：300V DC
● Flame resistance: VW-1 or FT1				● RoHs Compliant
● Standard:UL758, UL1581

Gauge	No.of Strands	Diameter of Strands MM	Diameter of Conductor	Resistance at 20℃ Ω/KM	Insulatio Thickness MM	Overall Diameter MM
						Overall Diameter MM
						Normal	Tolerance
10	105	0.254	3.00	3.54	0.50	4.00	±0.15
12	65	0.254	2.36	5.64	0.50	3.36	±0.15
14	41	0.254	1.88	8.96	0.50	2.70	±0.15
16	26	0.254	1.50	14.60	0.38	2.30	±0.10
18	41	0.16	1.15	23.20	0.38	1.95	±0.10
20	26	0.16	0.95	36.70	0.38	1.75	±0.10
22	17	0.16	0.76	59.40	0.38	1.56	±0.10
24	11	0.16	0.61	94.20	0.38	1.41	±0.10
26	7	0.16	0.48	150.00	0.38	1.28	±0.10
